First end-to-end test
Today I hooked everything up. Quite a jumble of wires; I plan to neaten things up a bit. The note detection code is still rudimentary and needs to be retuned for a slightly lower peak-to-peak voltage. But it all worked:

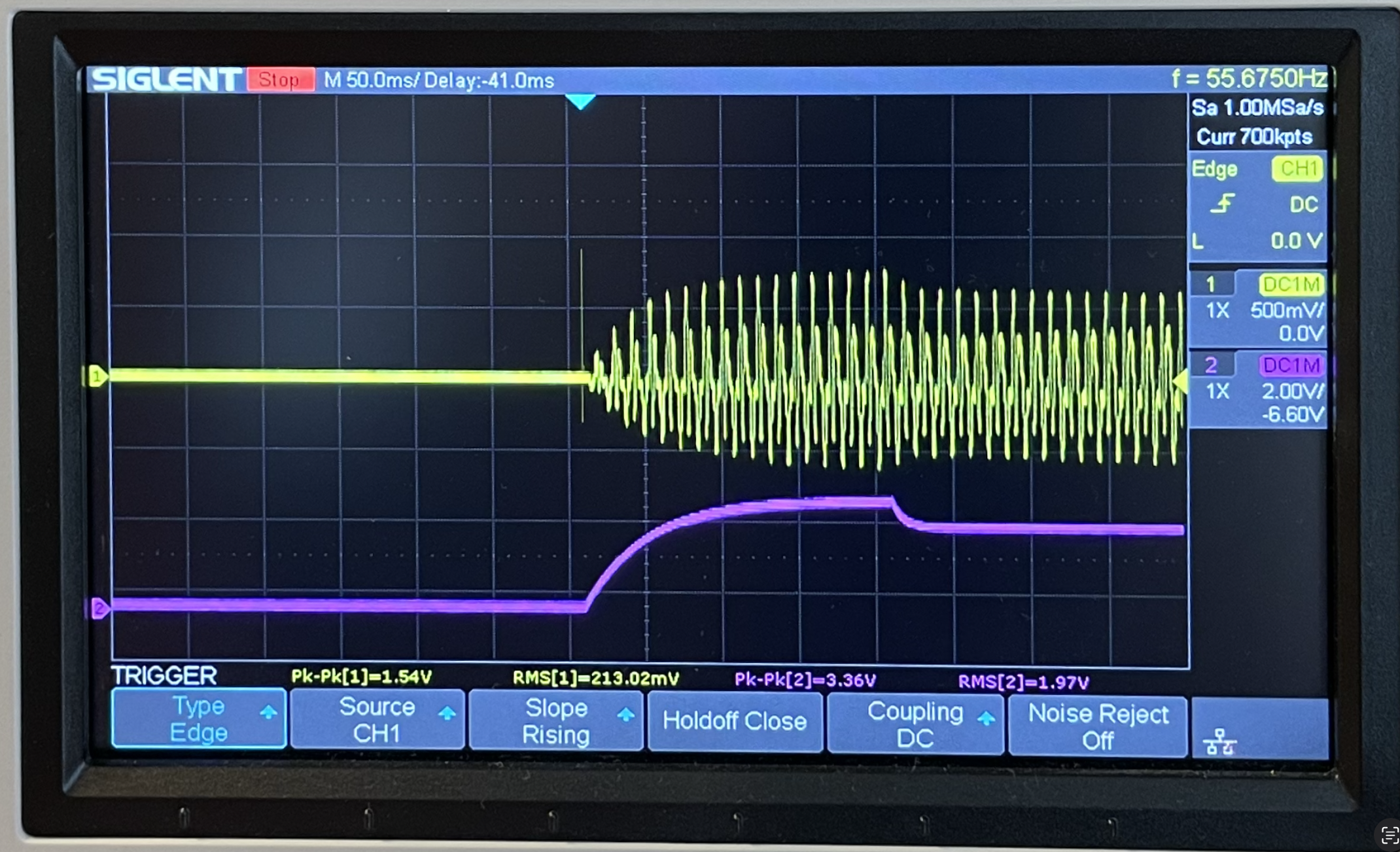

You can see the control voltage in purple and how it is amplifying / attenuating the sound signal:
